CFV235 Mesh

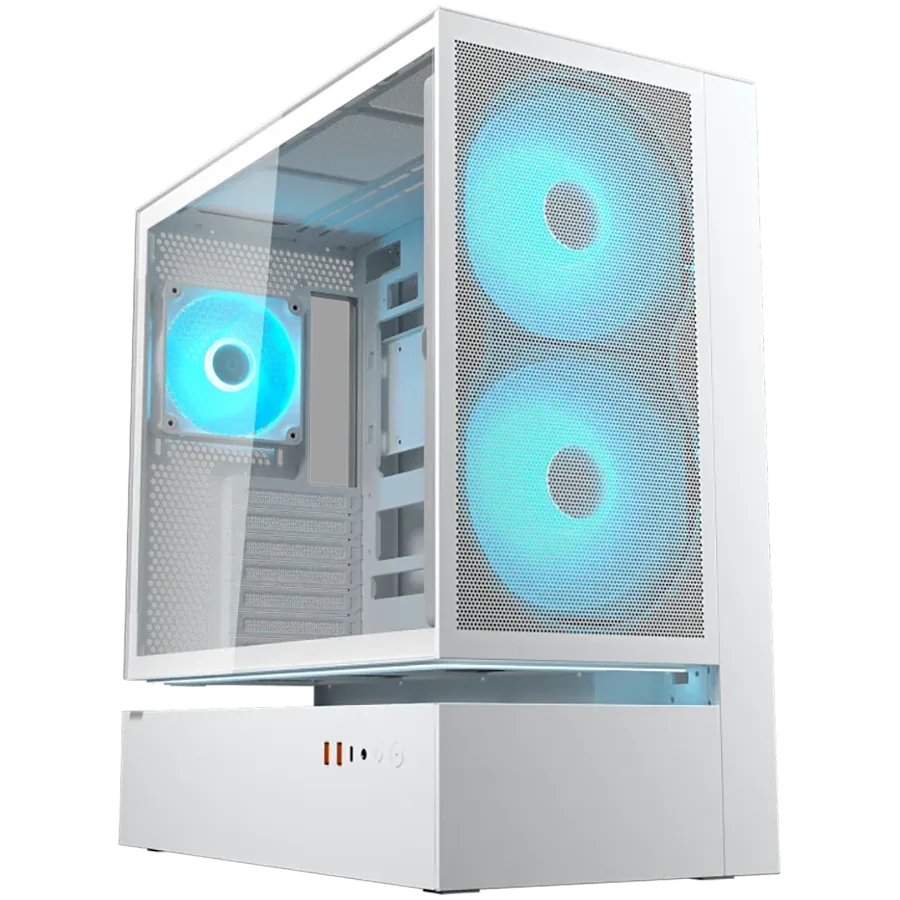

Float in Form. Flow in Function. The CFV235 Mesh is a new kind of PC case featuring the innovative Central Floating Ventilation (CFV) structure. This divides the PSU cabin and main chamber, retooling the open space in between as a cooling advantage by accessing extra ventilation, preserving a compact footprint without compromising architecturally-enhanced cooling. Paired with a 3-in-1 front panel module—combining mesh, dual 160mm ARGB PWM fans, and a dust filter into a single pre-assembled unit— the CFV235 Mesh empowers airflow beyond ordinary dimensions.
- Central Floating Ventilation free-floating separation provides a unique visual identity.
- True floating void adds an extra dimension of airflow across 270° of access.

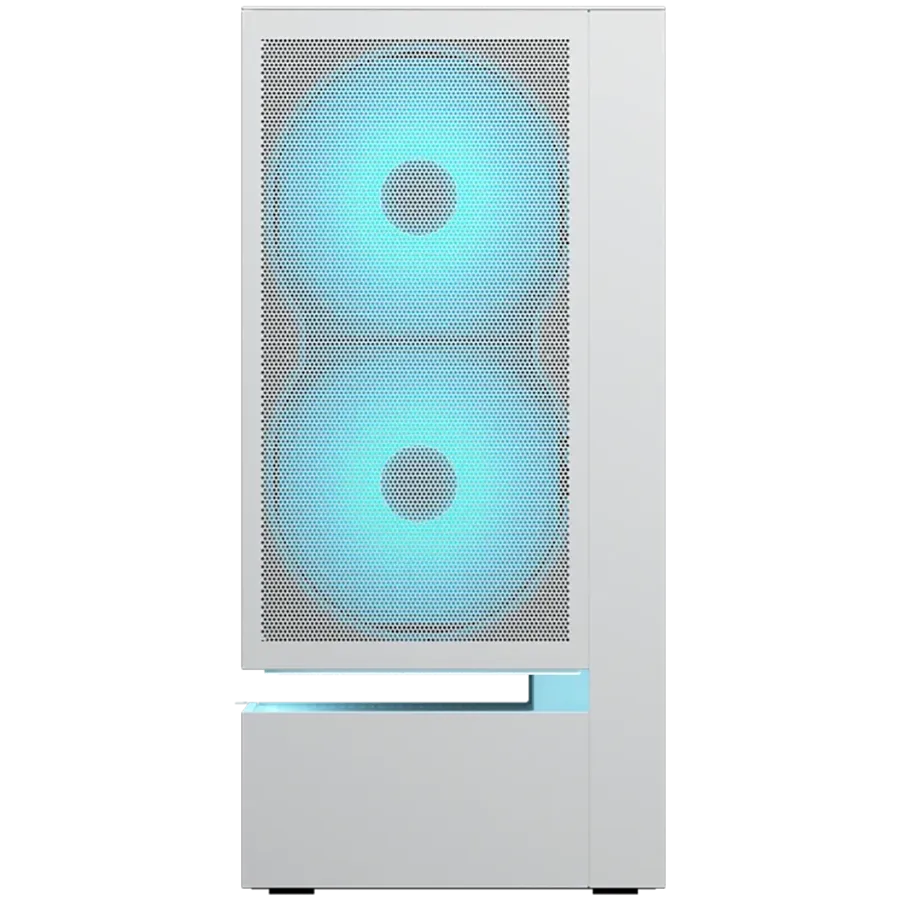

- A 3-in-1 front panel module pre-assembles a dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into a single unit for even easier maintenance.
- The module uses a pogo pin to connect with the case’s built-in counterpart, minimizing cabling for easy setup and a cleaner view.
- The Aurora RGB lighting strip brings the awe and glory of RGB lighting to the free-floating space.
- Accommodates a maximum GPU length of 400mm.
- Compatible with Reverse Connector / Mini ITX / Micro ATX / ATX / CEB motherboards.
- USB 3.2 Gen 2×2 Type-C (20 Gbps) x 1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device connectivity.
- Houses 2 x 3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays)
Cooling Capacity
The CFV235 Mesh has a fan capacity of 3x120mm or 2x140mm on the top, 3x120mm on the floor of the main chamber, 2x160mm fans on the front, and 1x120mm on the rear (2x160mm and rear 120 mm ARGB PWM fans are pre-installed). Water cooling support maxes out at 360mm on the top.
